VNP Series: Autonomous pallet stackers

Applications

Where it fits

Pallet Transport

Horizontal pallet moves between docks, staging, storage, and production, around the clock.

Stacking & Putaway

Pick up, stack, and put away pallets on the floor, in block stacks, or in low racking.

Production Supply

Deliver materials to line-side and take finished goods away, on a schedule or on demand.

How it works

Autonomous pallet stackers

01
Locate
The vehicle localizes by 3D SLAM and receives its task from the fleet system.
02
Pick
It identifies the pallet and positions the forks to engage it.
03
Transport
It drives the route, detecting obstacles and slowing or stopping as needed.
04
Place
It sets the pallet down, stacks it, or puts it away, then reports completion.

Model comparison

VNP Series

Specifications as published by VisionNav.

	VNP 15	VNP 30
Rated load	1,500 kg (3,307 lb)	3,000 kg (6,614 lb)
Lift height (standard)	3,000 mm (118 in)	3,000 mm (118 in)
Lift height options	3,500 · 4,000 · 4,500 mm	3,500 · 4,000 · 4,500 mm
Max. travel speed	1.5 m/s (3.4 mph)	1.5 m/s (3.4 mph)
Min. turning radius	1,490 mm (58.7 in)	2,020 mm (79.5 in)
Min. turning aisle	3,300 mm (130 in)	2,585 mm (101.8 in)

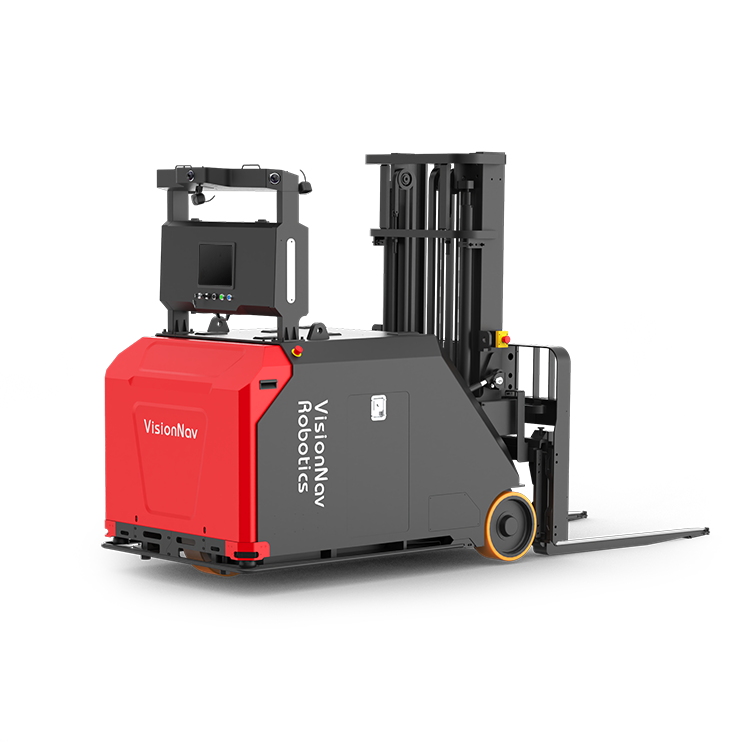

VNP 30 is a counterbalance stacker with no outriggers, for closed-bottom and non-standard pallets. Higher masts may reduce rated capacity.

Manufacturer specifications (VisionNav). Final selection depends on your loads, racking, aisles, and floor conditions; we confirm every figure for your application.
