Autonomous Forklifts
VNE Series
Autonomous counterbalance forklifts
General-purpose pallet lifting, transport, and stacking, from standard loads to heavy loads in container and dock areas.
Featured technology partner: VisionNav Robotics
Applications
Where it fits
Pallet Transport
Horizontal pallet moves between docks, staging, storage, and production, around the clock.
Stacking & Putaway
Pick up, stack, and put away pallets on the floor, in block stacks, or in low racking.
Trailer Handling
Load and unload palletized trailers and move pallets between the dock and staging.
How it works
Autonomous counterbalance forklifts
- 01
Locate
The vehicle localizes by 3D SLAM and receives its task from the fleet system.
- 02
Pick
It identifies the pallet and positions the forks to engage it.
- 03
Transport
It drives the route, detecting obstacles and slowing or stopping as needed.
- 04
Place
It sets the pallet down, stacks it, or puts it away, then reports completion.
Model comparison

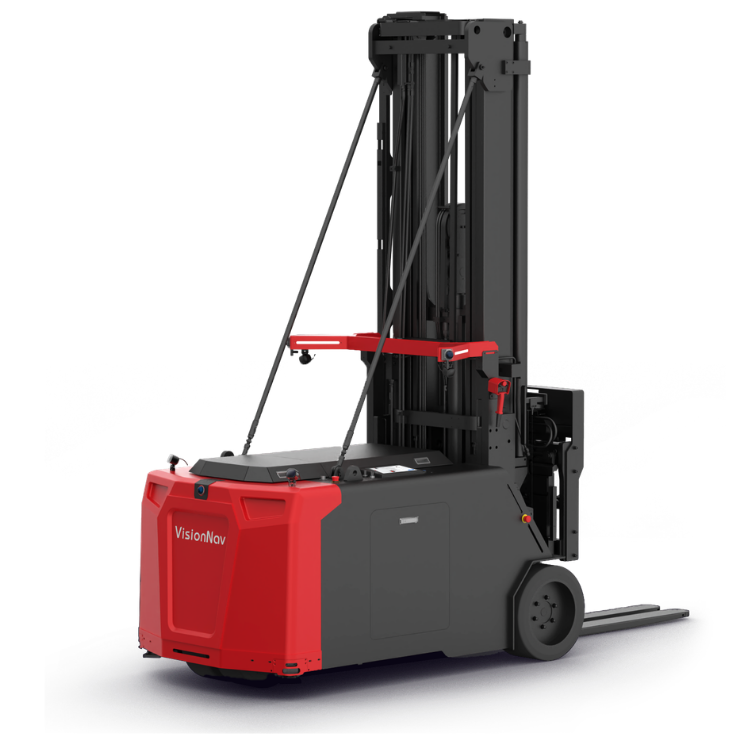

VNE Series
Specifications as published by VisionNav.
| VNE 20-66 | VNE40-66 | |
|---|---|---|
| Rated load | 2,000 kg (4,409 lb) | 2,800 kg (6,180 lb) |
| Lift height (standard) | 3,000 mm (118 in) | 2,680 mm (8.8 ft) |
| Max. travel speed | 2.7 m/s (6.0 mph) | — |
| Min. turning radius | 1,800 mm (70.8 in) | — |
| Min. stacking aisle | 4,000 mm (157.5 in) | — |
| Min. turning aisle | 2,450 mm (96.4 in) | 2,800 mm (110.2 in) |
| Navigation | — | 3D SLAM |
Manufacturer specifications (VisionNav). Final selection depends on your loads, racking, aisles, and floor conditions; we confirm every figure for your application.
Integration
What your site needs
- Wi-Fi coverage along every travel route
- A connection to your WMS or MES through the fleet system
- Defined pick-up and drop-off positions and load types
- Aisle widths matched to the model (see the comparison above)
- Even, clean floors along routes and at stacking positions
- Charging locations sized to your shifts
Options & accessories
VNE Series
- Multiple fork lengths and options (VNE40-66)
- 3D LiDAR for real-time detection
Discuss a deployment
Tell us about your loads, routes, and volumes, and we’ll confirm whether this series fits.
